RemoBIF BM

RemoBIF BM

Bed control for all!

RemoBIF BM with wall mount

The RemoBIF BM

A big wish of many people with limitations of the upper limbs is being fulfilled: Control the bed yourself again!. The RemoBIF BM from CSS is an MDR-compliant bed control interface that enables the safe control of your own bed with individual control elements, communication (AAC) and environmental control devices. Ein optimiertes Montagesystem fährt mit dem Kopfteil mit, sodass die Bedienung in jeder Position möglich ist. Three market leaders make your wishes come true: CSS has brought the professionals for healthcare beds on board with Burmeier and the specialists for mounting devices with Rehadapt.

Cooperations

Bed control for all!

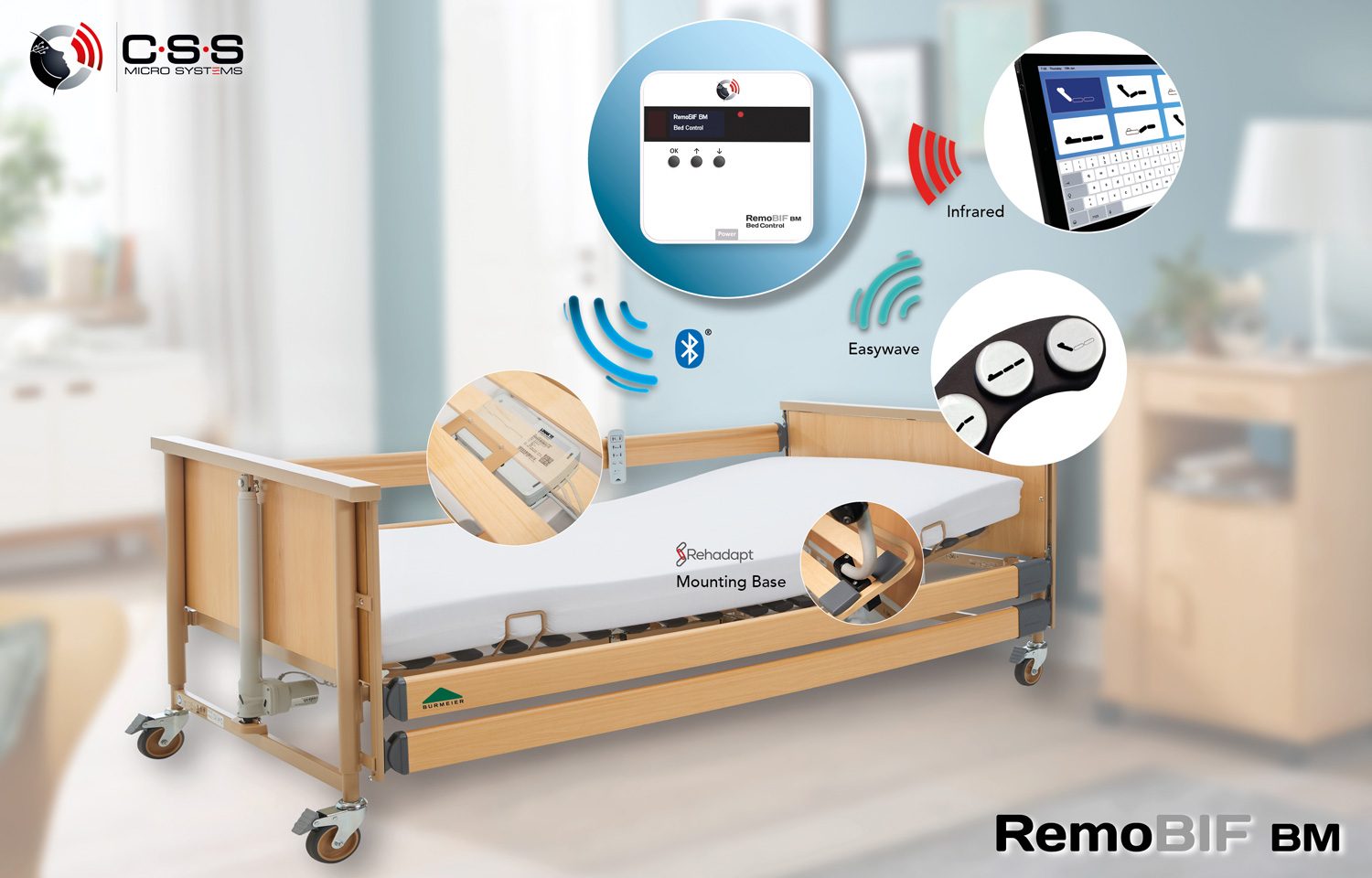

The RemoBIF BM is specially designed for the Burmeier care bed "Dali" that use protected Bluetooth® control. These beds can be safely controlled with infrared signals or Easywave radio. Both are supported by many common communication (AAC) and environment control devices and make the choice of control elements such as proximity or acoustic sensors, switches, buttons, head and eye control flexible.

The bed control interface has integrated safety functions that prevent critical situations when it is controlled via infrared and radio. For example, a continuous function is interrupted after a predefined time.

Mounting elements from the market leader Rehadapt also contribute to safety, which enable the secure attachment of the environment control or communication devices to the backrest of the “Dali” bed. Even systems with eye control are always optimally positioned.

20200116_AssistX-Mobil-TX-Sensor-BottomView-cut_web

Assistive Call Activation

Any sensors or buttons can be connected via the AssistX Port. External devices with a call output, e.g. ventilators, can be used as a trigger. Customized according to needs and for each user.

More Information

and technical details
  • The connection and installation is simple and menu-driven in no time.
  • Infrared Receiver 38 KHz, RC5 Code
  • Infrared Transmitter integrated (to train IR codes)
  • Easywave Receiver
  • 8 functions: backrest, lying surface, footrest, footrest down
  • Supports Dali care bed from
  • Dimensions: 102 x 102 x 30,5 mm
  • Wall mount included
  • Optional Accessories #20324 IR handheld remote control BIF8 plus
  • Mounting systems backrest

AssistX Mobil – Call System:

AssistX Interface cables for pulse oximeter, ventilators,…:

20542-01

Für Pulsoximeter/For pulse oximeter Nellcor N560

20542-02

Für Pulsoximeter/For pulse oximeter Nellcor PM100N

20542-03

Für Pulsoximeter/For pulse oximeter Massimo Rad-8

20542-04

Für Pulsoximeter/For pulse oximeter Nonin Avant 9600

20542-05

Für Pulsoximeter/For pulse oximeter VitaGuard VG310+2100+3100

20541-01

Für Beatmungsgerät/For ventilators Trilogy 100+200 Philips

20541-02

Für Beatmungsgerät/For ventilators Beatmungsgerät Astral 100+150, Stellar 100+150, Resmed

20541-03

Für Beatmungsgerät/For ventilators Beatmungsgerät Vivo 50+55+60+65,Breas

20541-04

Für Beatmungsgerät/For ventilators Respironics V60, Philips

20541-05

Für Beatmungsgerät/For ventilators Ventilogic plus/LS, Löwenstein

20541-07

Für Beatmungsgerät/For ventilators LM Luisa

20543-01

Für Bettalarm/For bed alarm Epi-Care 3000

20543-02

Für Bettalarm/For bed alarm Emfit

20543-03

Für Ernährungspumpe/For nutrition pump Nestlé Compat Ella

20543-04

Für Ernährungspumpe/For nutrition pump Fresenius APPLIX

AssistX Sensors:

Hygienic pneumatic switches:

AssistX Buttons NC:

Mounting AssistX:

20524

Flexibler Gerätehalter für/flexible mounting for AssistX Mobil Gelenkarm/mounting arm

20365

HMV-Nr 52.99.01.2002 Gerätehalter für/mounting for AssistX Mobil am Gelenkarm/on mounting arm

20366

HMV-Nr 52.99.01.2002 Gerätehalter für/mounting for AssistX Mobil für/for Rehadapt L3D 10mm.

20097

HMV-Nr 52.99.01.2001 Gelenkarm für/mounting arm for AssistX AS one, AssistX ABL/BL

20459

HMV-Nr 52.99.01.2004 Montageplatte magnetisch für/magnetic mounting plate for AS one, IR one, RX one, ABL & Remobox

20458

Wandhalterung magnetisch für/magnetic wall mount for RemoBox, AS one, ABL

AssistX Accessoires:

20164

IR-Fernbedienung für/IR remote control for IR one & AssistX TX

20527

Set: stereo & mono Kabel/cable

20206

A-micro USB-Kabel grün/A-micro USB cabel green

20205

4pol. Klinkenstecker/jack plug 2m

20457

HMV 52.40.03.5002 kompatibler Empfänger für Easywave-Geräte/compatible receiver for Easywave devices

AssistX Demo-Kits:

18001

MOBIL+CALL

18002

MOBIL INTENSIV

18003

FULL SET
