AssistX Mobil

AssistX Mobil

Secure and flexible: The wireless call system

AssistX Mobile transmitter and receiver group

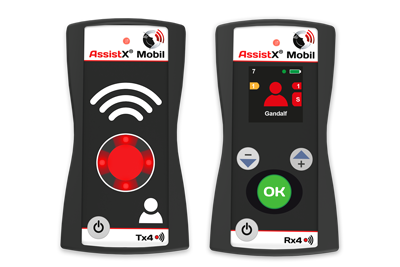

AssistX Mobil RX4 TX4 front view, small

Our AssistX Mobil

AssistX Mobil is a safe, flexible, wireless call system for intensive care at home, in residential groups, homes and clinics. A wide variety of sensors and switches, but also communication aids and medical devices can be used to trigger a call. Multiple transmitters can be combined with one or more receivers.

Security

the call that is receivedsafely

AssistX Mobil is particularly safe: the transmitters and receivers use a special frequency and meet all requirements of the German standard DIN VDE 0834. Every call is confirmed and cannot be lost. Continuous monitoring of the battery status and range guarantee perfect functioning. Unplugging a cable or other changes also trigger an alarm. All activities are logged in the receiver.

CSS_AssistX-Mobil_Assistive-Callsystem_savetyIcons_web
AssistX Mobile transmitter and receiver group
20200116_AssistX-Mobil-TX-Sensor-BottomView-cut_web

Assistive Call Release

Any switches or sensors can be connected via the AssistX port. External devices with a call output, e.g. ventilators can be used as triggers. Customized for each user, as needed.

ProX

proximity switch

RX one

RX One

easywave radio receiver

Hy Pneumax

sipp and puff switch

Tablet_klein_web

Devices

for communication

AS One

acoustic switch

Placeholder transparent

Ventilators

and pulse oximeter

Kajo NC

the secure Button

Buttons

all kinds

Multi User

One for all, all for ...

For use in residential groups, in small nursing homes and in clinical environments, several transmitters can be combined with one or multiple receivers. The receivers recognize when another has already confirmed the call. A name can be assigned to each transmitter so that you can immediately see who needs help. Optional repeaters increase the range in larger buildings.

AssistX Mobile transmitter and receiver group diversified
AssistX Mobil with tablet illustration

AAC

Extend with a secure call

A communication device enables conversation with its voice output and in writing. With AssistX Mobil it can be expanded with a secure call function. The AAC device only needs to have an infrared transmitter, which is usually installed. A safe call can be activated with eye control, head or mouth movements.

Accessories

For every day use

In everyday life it can get very busy. Charging the batteries, mounting and connecting to other devices must be very easy. Proven accessories are the key to trouble-free operation.

Dock AssistX Mobil

Dock

charging dock

Rohrhalterung AssistX Mobil

Device Mounting

flexible attachment

S-Charger AssistX Mobil Sender

S-Charger

secure charging

Interface-Wire_AssistX-Mobil_web1

Interface-Wire

for external devices

AssistX Mobil Repeater

AssistX Mobil Repeater

EXTENDED RANGE

In large facilities and buildings, it is often important to significantly increase the range of the AssistX Mobil call system. It's easy with the AssistX Mobil Repeater! Simply connect, switch on, ready. Up to 8 repeaters can be used in one system, they organize themselves, no settings are necessary. A buffer battery ensures safe function even in the event of a power failure.

AssistX Mobil RX4 TX4 front view OFF

More Information

and technical details
  • Secure wireless call system according to DIN VDE 0834
  • Transmitter is equipped with an AssistX port
  • Battery and function monitoring of the transmitter
  • Range monitoring
  • Acknowledgement by soothing lamp function
  • Adjustable volume
  • Optical and acoustic signaling
  • Vibration signaling
  • Social Alarm Frequency
  • Group: Several transmitters can be *interconnected to several receivers
  • An individual name can be assigned to each transmitter.
  • Large color display in the receiver
  • Battery life: Depending on the inserted sensor, up to several days (transmitter); 9 - 20 h (receiver)
  • Receiver configurable by display menu or PC
  • Dimensions: approx. 65 x 119 x 26.5 mm

Reseller & Distributors

Are you looking for purchasing this product and are you looking for the right specialist reseller?
